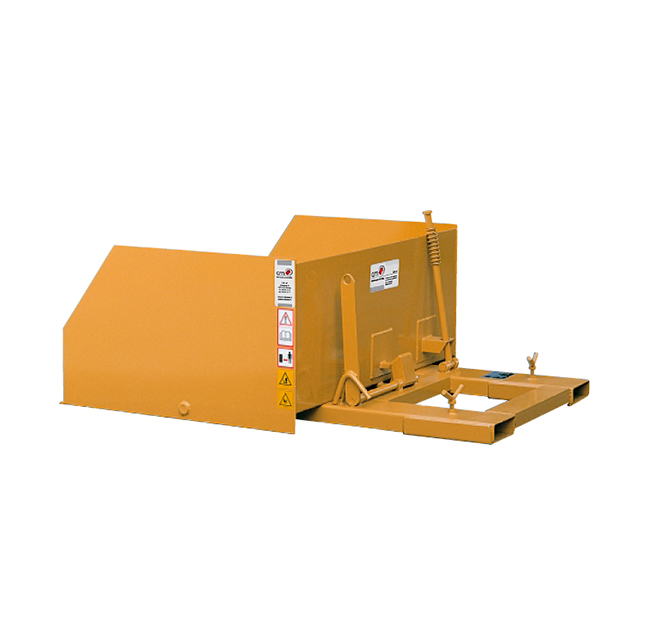

Mechanical bucket CMBL/MF
Mechanical fork mounted bucket applicable to all forklift trucks
- Capacity 0,4 or 0,5 m³
- Spoonbucket width from 900 mm to 1200 mm
Application fields
Material handling of loose products, inerts, sand, gravel, snow, etc.Mechanical bucket CMBL/MF complete with
- Quick hooking/unhooking

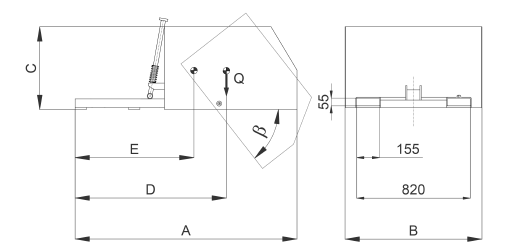

| Modello | 400 | 500 | ||
|---|---|---|---|---|
| A | Length | mm | 1540 | 1540 |
| B | Width | mm | 900 | 1200 |
| C | Height | mm | 570 | 570 |
| D | Load centre | mm | 1050 | 1050 |
| E | Barycentre without load | mm | 700 | 700 |
| ß | Unloading angle | ° | 52 | 52 |
| – | Capacity | m³ | 0.4 | 0.5 |
| Q | Maximum load | kg | 400 | 500 |
| – | Weight | kg | 170 | 190 |
