Hydraulic forklift CM 30TBCH

Hydraulic forklift suitable to high power tractors

Load capacity 3000 kg
Lifting height from 2700 to 6000 mm
It provides a great visibility to the operator

Application fields

Fruits and vegetables harvesting

Categories: Hydraulic Forklifts, Triplex

CM 30 TBCH hydraulic forklift is complete with

Cylindrical roller bearings

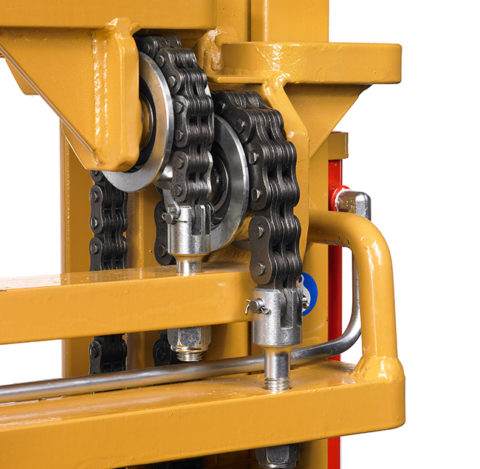

Four “Fleyer” lifting chains
“H” shaped hot rolled steel profiles
Two lateral double effect lifting cylinders
Cat.3 three point linkage
Distributor with 4 levers
FEM side shift sliding on bronze pads
FEM forks
Tilting cylinder with adjustable junction
Connecting hoses to the tractor

Optional Accessories

Other accessories

Other accessories

Triplex
Model	C mm	H mm	P Kg	B mm	A mm	L mm	E mm	D mm	Q Kg
30 TBCH 2700	2700	1820	820	1350	2450	800	240÷1000	500	3000
30 TBCH 3200	3200	1985	870	1350	2450	800	240÷1000	500	3000
30 TBCH 3600	3600	2120	915	1350	2450	800	240÷1000	500	3000
30 TBCH 4000	4000	2250	960	1350	2450	800	240÷1000	500	3000
30 TBCH 4500	4500	2420	1040	1350	2450	800	240÷1000	500	3000
30 TBCH 5200	5200	2650	1130	1350	2450	800	240÷1000	500	3000
30 TBCH 6000	6000	2920	1220	1350	2450	800	240÷1000	500	3000

C	Lifting height
H	Overall dimensions
P	Weight
B	Minimum opening
A	Maximum opening
L	Forklift width
E	Forks width
D	Load centre
Q	Load capacity

[
